Substation Insulators

A Solid Post Insulator is a crucial component in electrical systems, used to insulate and support conductive rods or brackets, preventing electrical leakage. They are typically made from materials like ceramics or polymers, catering to various voltage levels. Key features include their structural design, voltage withstand capability, pollution resistance, and mechanical load-bearing capacity.Standards ensure their quality and safety. Common ones include IEC 60273, ANSI C29 Series, GB/T 1001.1-2016, and DIN EN 50341-1, depending on the region and application.In summary, Solid Post Insulators are essential for the reliable and safe operation of electrical systems, and adherence to appropriate standards is crucial to ensure their performance and safety. Regular inspections and maintenance are also important to uphold their integrity.

A Solid Polymer Post Insulator, commonly used in electrical systems, serves as a vital component for insulating and supporting conductive rods or brackets, thereby preventing electrical leakage. These insulators are typically crafted from polymer materials, with designs suitable for various voltage levels. Key attributes include their structural integrity, voltage withstand capabilities, resistance to pollution, and mechanical load-bearing capacity.Compliance with industry standards is essential to ensure the quality and safety of Solid Polymer Post Insulators. Common standards include IEC 60273, ANSI C29 Series, GB/T 1001.1-2016, and DIN EN 50341-1, depending on the region and application.In summary, Solid Polymer Post Insulators play a critical role in maintaining the reliability and safety of electrical systems. Adherence to relevant standards is crucial to guarantee their performance and safety, and regular inspections and maintenance are essential for their longevity.

Insulation: Transformer bushings serve as insulating components, isolating and protecting the internal windings (coils) and the windings from the transformer's metallic casing or enclosure. This insulation is crucial in preventing current leakage or arc discharge, ensuring the safe operation of the transformer.

Mechanical Support: Bushings typically possess robust mechanical strength, capable of supporting the weight of the windings and withstanding external mechanical forces such as wind, rain, ice, and vibration. They also protect the internal windings from physical damage caused by the external environment.

Pollution Resistance: Transformer bushings often feature specially treated surfaces to enhance their resistance to pollution. This helps prevent the accumulation of contaminants on their surfaces, which could otherwise compromise their insulating properties.

Thermal Stability: Since transformers generate heat during operation, the materials used in bushings need to have good thermal stability to withstand high-temperature conditions without deterioration.

Insulation: Transformer bushings serve as insulating components, isolating and protecting the internal windings (coils) and the windings from the transformer's metallic casing or enclosure. This insulation is crucial in preventing current leakage or arc discharge, ensuring the safe operation of the transformer.

Mechanical Support: Bushings typically possess robust mechanical strength, capable of supporting the weight of the windings and withstanding external mechanical forces such as wind, rain, ice, and vibration. They also protect the internal windings from physical damage caused by the external environment.

Pollution Resistance: Transformer bushings often feature specially treated surfaces to enhance their resistance to pollution. This helps prevent the accumulation of contaminants on their surfaces, which could otherwise compromise their insulating properties.

Thermal Stability: Since transformers generate heat during operation, the materials used in bushings need to have good thermal stability to withstand high-temperature conditions without deterioration.

SOHO Porcelain Disc Suspension Insulators can be devided into IEC Standard Type and ANSI Standard Type.

● Available for any voltage and contamination level by changing number of insulators

● Mechanical strength up to 160kN

● High reliability through accumulated technology

● Excellent long-term performance

● Multiple color selection: Brown/Grey/White/Green/Blue/Red

SOHO standardized internationally according to the following standards:

● IEC 60383-1-1993

● ANSI C29.2B-2013

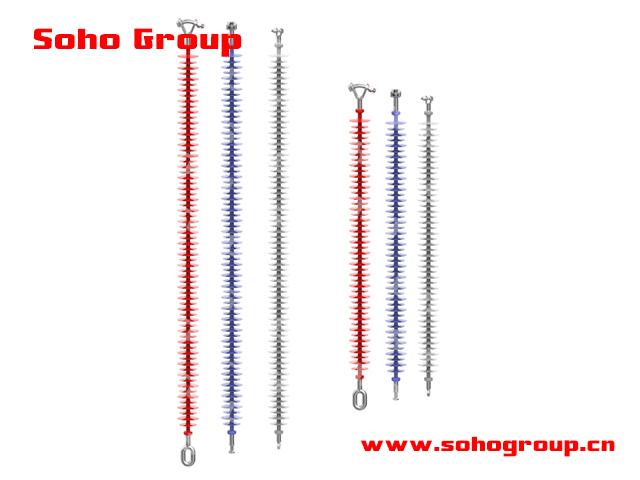

Insulators are used in electrical equipment to support and separate electrical conductors without allowing current to pass through the insulators. Silicone rubber is the most widely used polymeric insulation material for high voltage products. SOHO composite insulators have excellent performance in all climates and harsh conditions such as coastal, desert and industrial environments.

SOHO standardized internationally according to the following standards:

● IEC 61109

● ANSI 29.11

● ANSI 29.12

● CSA C411.4-16.

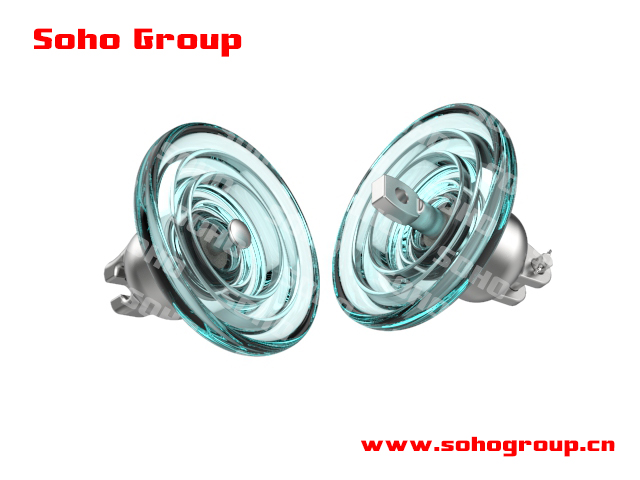

SOHO is pleased to be able to provide our customers with toughened glass insulators. For many customers and applications, SOHO's toughened glass provides a high level of performance and long-term security for high voltage insulation.

● Breaking load between 40kN and 420kN

● Frequencies up to 100 Hz are supported.

● Temperature range is between -60°C and +50°C.

● The insulators are made of an insulating element, a cap and a pin,according to IEC 60305.

● The cap and pin are made of high-strength hot galvanized cast-iron, with corrosion- resistant coverage, according to IEC 60120 and ANSI C29.2.

● The cap and pin can be of the type ball-socket or clevis-tongue.

● The lock, a split-pin  is made of stainless steel or phosphor bronze according to IEC 60372.

● Glass insulators are used to form a string.
