Suspension Clamps
You are here: Home > TRANSMISSION-LINE>Transmission-Line Fittings>Suspension Clamps - 5 products were found.

Categories


Suspension Clamps

Suspension Clamps

  • Suspenson Clamp (Standard Type)

    Suspenson Clamp (Standard Type)

    For standard voltage application with all aluminum conductors, aluminum alloy conductors, aluminium conductor steel reinforced, aluminium alloy conductor steel reinforced with/without formed armor rod or armor tape. Also application with galvanized steel strand wire and aluminum clad steel strand wire.



    Material:

    Body – aluminum alloy

    Keeper – aluminum alloy

    Hardware – hot dip galvanized steel (ISO1461,ASTM A153)

    Cotter pin – stainless steel

    IFA-NSW811687
    Min. Order: 1 Piece

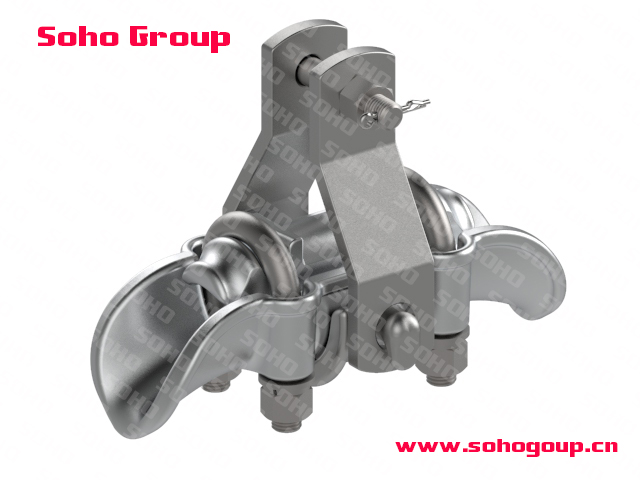

  • Pilot Type Suspension Clamp

    Pilot Type Suspension Clamp

    For standard voltage application with all aluminum conductors, aluminum alloy conductors, aluminium conductor steel reinforced, aluminium alloy conductor steel reinforced with/without formed armor rod or armor tape.



    Material:

    Body – aluminum alloy

    Keeper – aluminum alloy

    Clamp support – forging steel

    Hardware – hot dip galvanized steel (ISO1461,ASTM A153)

    Cotter pin – stainless steel

    IFA-HLQ657929
    Min. Order: 1 Piece

  • Corona Free Suspension Clamp

    Corona Free Suspension Clamp

    Designed for use on extra-high voltage transmission lines.

    Corona and RIV are controlled through the design of the clamp, thus eliminating the need for control rings.

    Type CFS is recommended for all aluminum, ACSR or aluminum alloy conductors with straight, tapered or formed armor rods.

     Material:

    Body – high strength aluminum alloy

    Keeper – aluminum alloy

    Hardware – hot dip galvanized steel (ISO1461,ASTM A153)

    IFA-OZM256368
    Min. Order: 1 Piece

  • Armour Grip Suspension Clamp

    Armour Grip Suspension Clamp

    Designed for use on extra-high voltage transmission lines.

    Corona and RIV are controlled through the design of the clamp, thus eliminating the need for control rings.



    Material:

    Hoursing – high-temperature aluminum alloy

    Strap – aluminum alloy

    Insert – neoprene/EPDM

    Hardware – hot dip galvanized steel (ISO1461,ASTM A153)

    Cotter pin – stainless steel


    IFA-GTZ068366
    Min. Order: 1 Piece

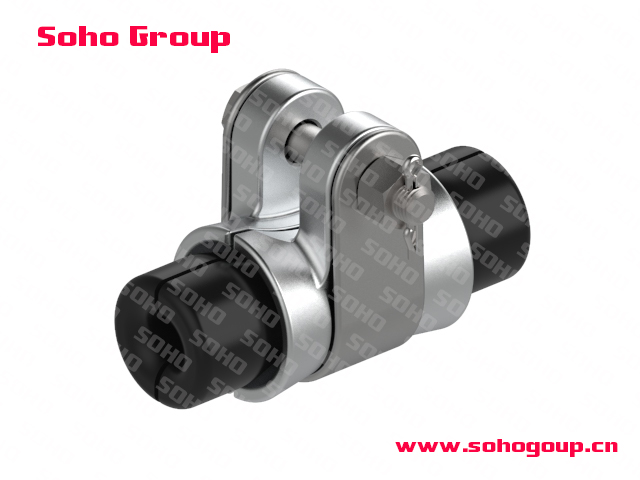

  • Suspension Clamp for High Temperature (Corona Proof Type)

    Suspension Clamp for High Temperature (Corona Pr...

    Designed for use on extra-high voltage transmission lines. Corona and RIV are controlled through the design of the clamp, thus eliminating the need for control rings.

    Type CFSH is designed for use on conductors operating at continuous temperatures up to 250° C. Armor rods or line guards required on conductors with continuous temperatures exceeding 200° C.

     Material:

    Body – high-temperature aluminum alloy

    Keeper – aluminum alloy

    Grommet – neoprene

    Hardware – hot dip galvanized steel (ISO1461,ASTM A153)

    Cotter pin – stainless steel



    IFA-CDZ169910
    Min. Order: 1 Piece
