Transmission-Line Fittings

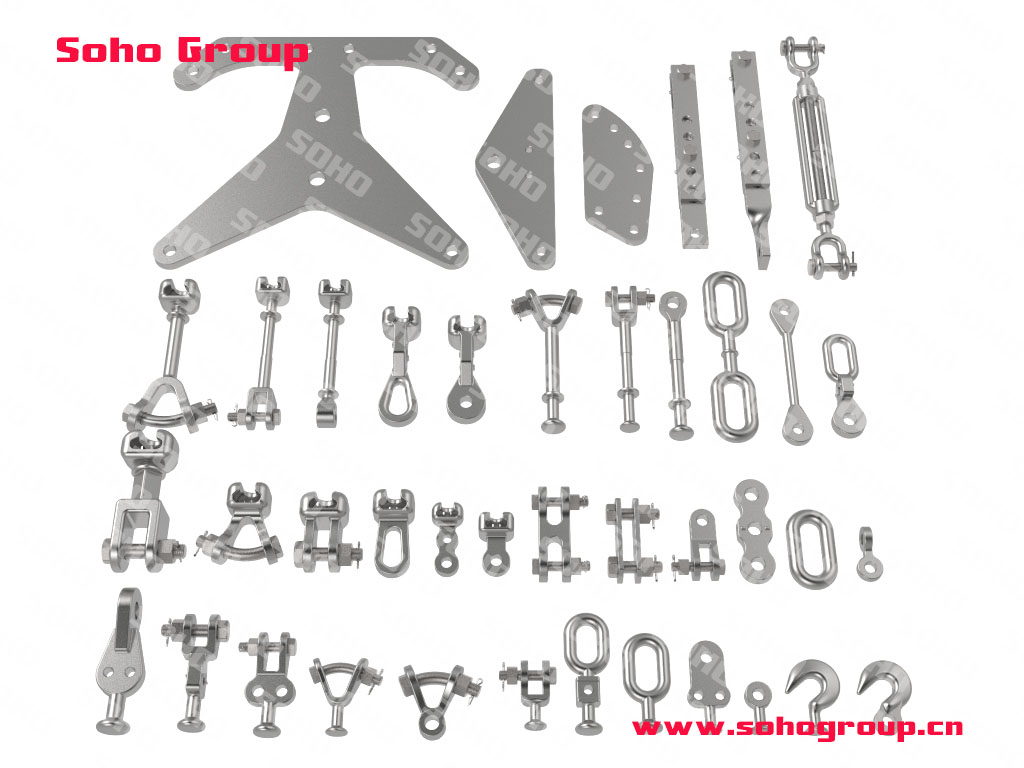

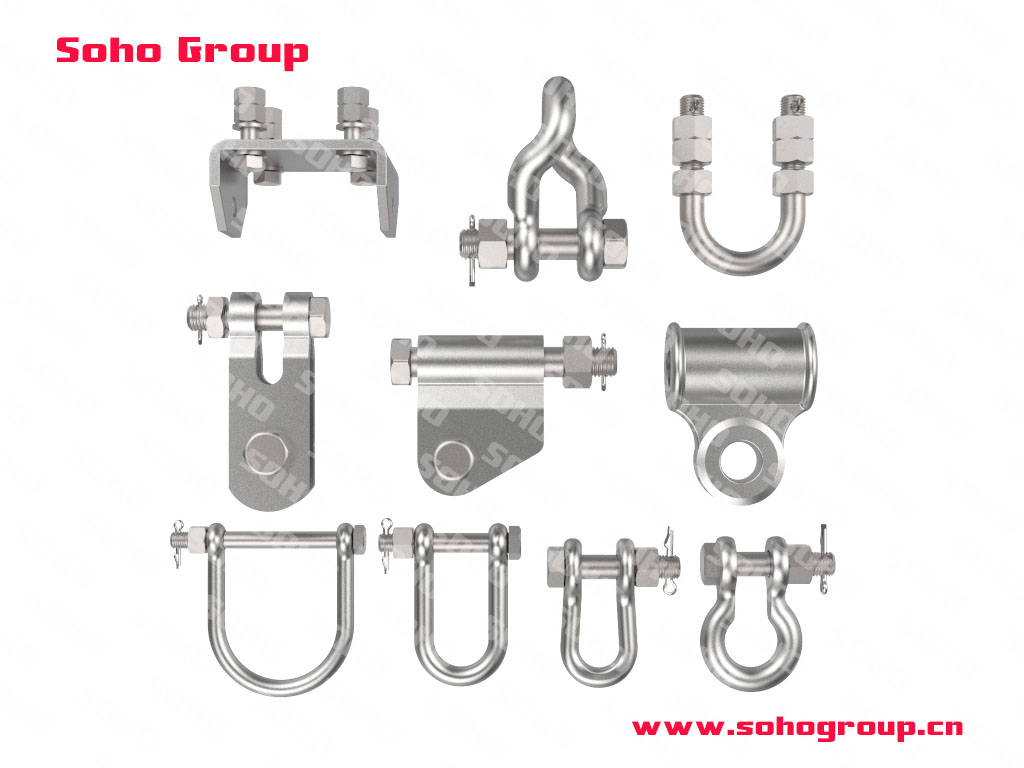

SOHO's string hardware offered in this part of the category are made up of fittings connecting insulators with the towers and conductors under mechanical load.

SOHO standardized internationally according to the following standards:

● IEC 60120 - Dimensions of ball and socket couplings of string insulator units

● ANSI/NEMA C29.2 - Wet Process Porcelain and Toughened Glass - Suspension Type

● IEC 60372 - Locking devices for ball and socket couplings of string insulator units - Dimensions and tests

● IEC 60471 - Eyes and clevises; connecting dimensions

● IEC 61284 - Overhead lines - Requirements and tests for fittings

● ISO 1461 - Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and test methods

SOHO's tower attachment are offered in this part of the category are made up of tower attachment connecting strings with the towers mechanical load.

SOHO will be according to various tower connection requirements and consider the wobbles from wind caused by a variety of environmental factors,SOHO can provide the best solution.

SOHO standardized internationally according to the following standards:

● IEC 61284 - Overhead lines - Requirements and tests for fittings

● ISO 1461 - Hot dip galvanized coatings on fabricated iron and steel articles-Specifications and test methods

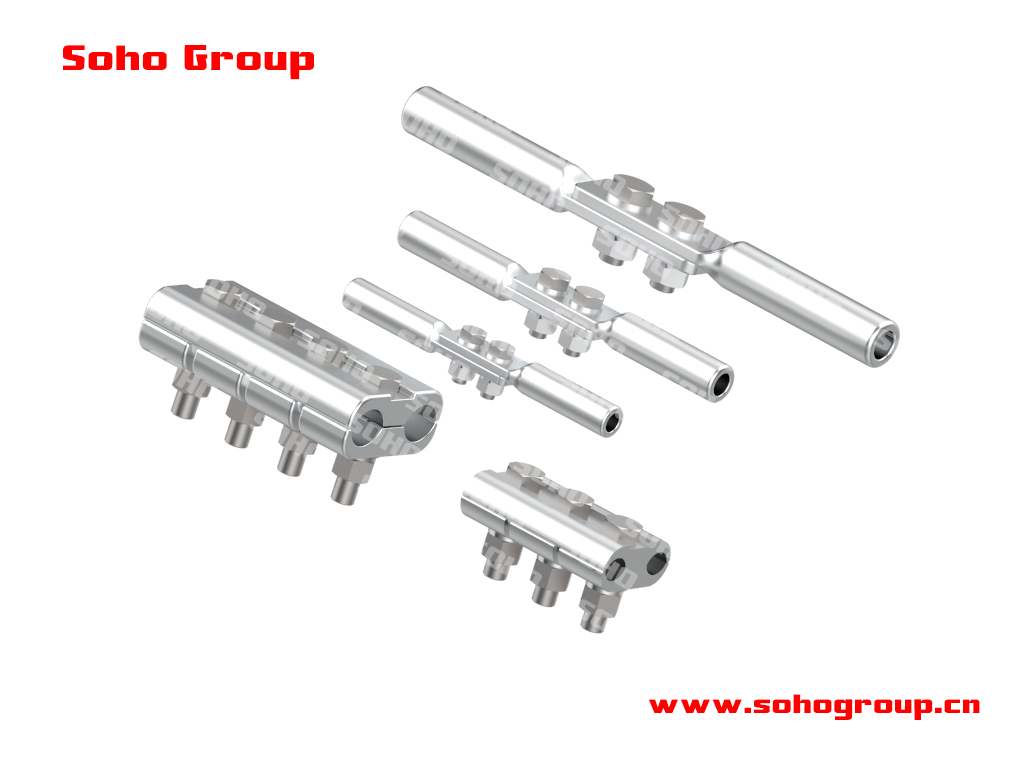

SOHO's Parrallel groove and jumper connector offered in this part of the category are made up of condcutor connecting conductor when jumper condcutor are connected.

Quality factor:

● Roughness for conductor to clamp contact surface.

● Current carrying for contact surface.

● Current carrying for body.

● Torque of bolts & nuts considerations.

● Corona and RIV (more than 230kV)

SOHO standardized internationally according to the following standards:

● IEC 61284 - Overhead lines - Requirements and tests for fittings

● ISO 1461 - Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and test method

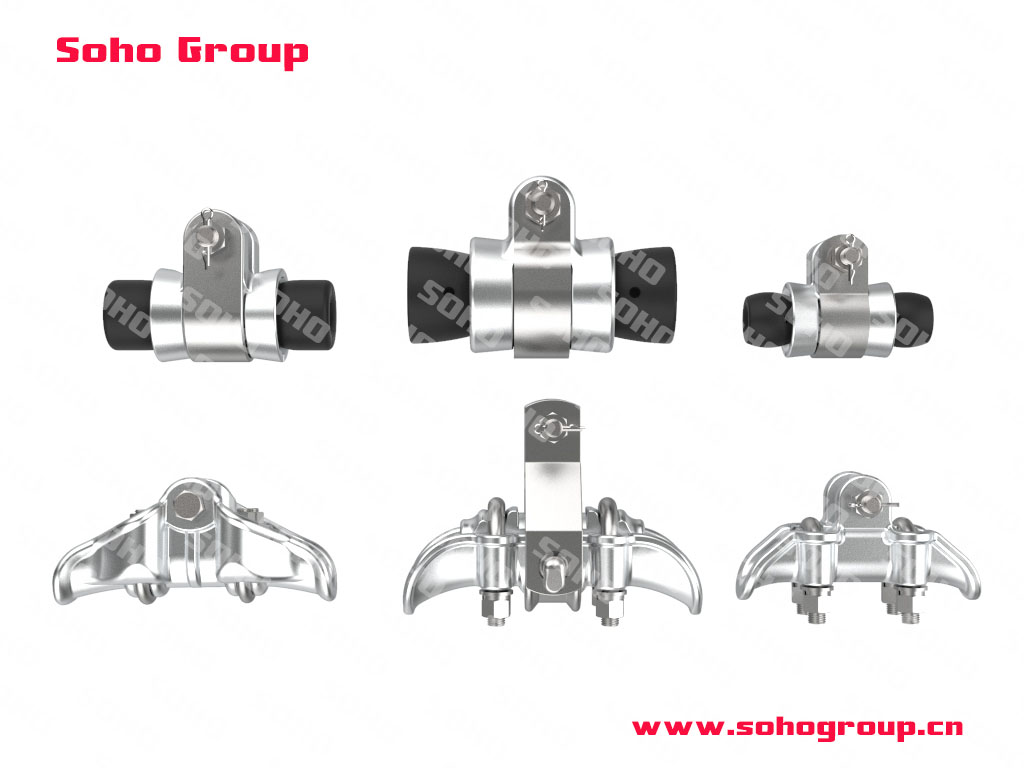

SOHO's suspension clamp or AGS clamp offered in this part of the category are supporting strings and conductors under mechanical load.

Quality factor:
● Damage and failure load of clamp

● Slip strength of clamp

● Torsion  of bots and nuts

● Corona and RIV (more than 230kV)

SOHO standardized internationally according to the following standards:

● IEC 61284 - Overhead lines - Requirements and tests for fittings

● ISO 1461 - Hot dip galvanized coatings on fabricated iron and steel articles-Specifications and test methods

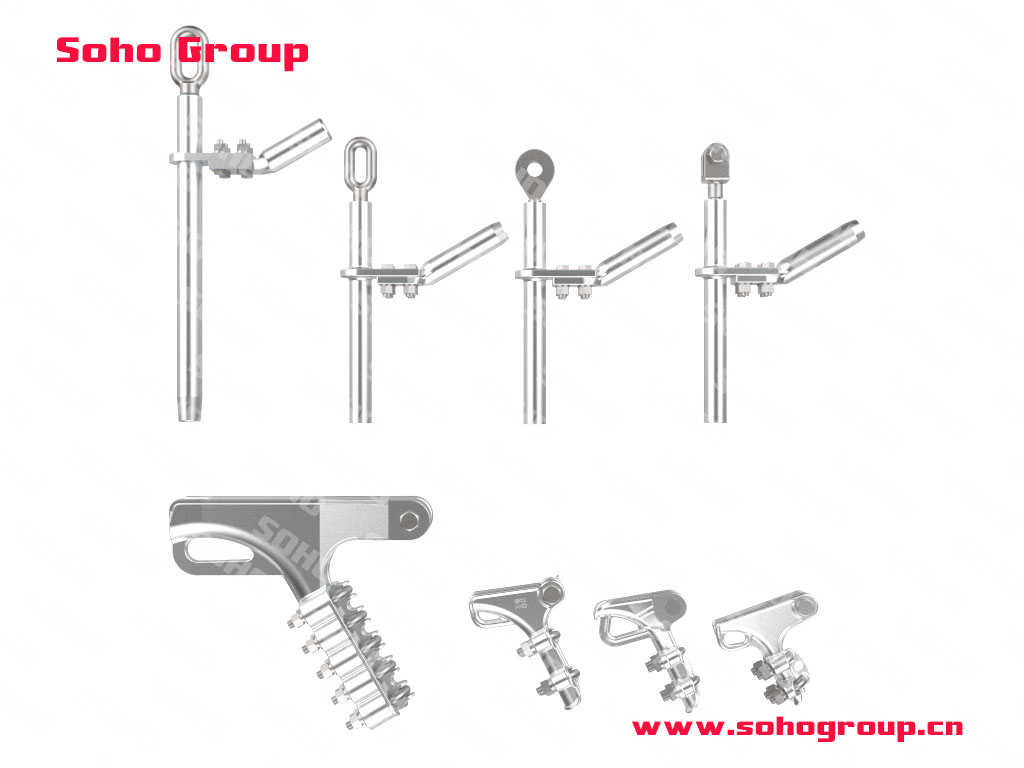

SOHO's compression tension clamp and bolts tension clamp offered in this part of the category are connecting strings and conductors under mechanical load.

Quality factor:
● Damage and failure load of clamp

● Calculating length of compression part according to conductor's performance.

● Calculting inner and outer diameter to match conductor's mechanical properties and electrical performance.

● Current carrying for body and jumper

● Current carrying for contact surface between body and jumper

● Torsion  of bots and nuts

● Corona and RIV (more than 230kV)

SOHO standardized internationally according to the following standards:

● IEC 61284 - Overhead lines - Requirements and tests for fittings

● ISO 1461 - Hot dip galvanized coatings on fabricated iron and steel articles-Specifications and test methods

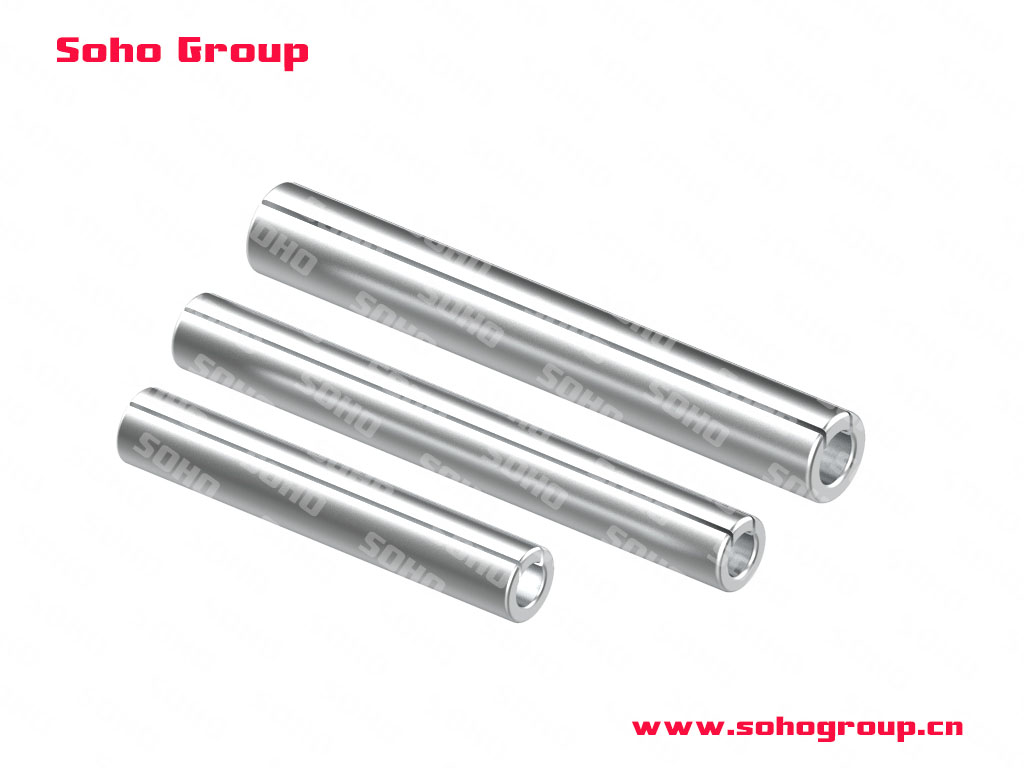

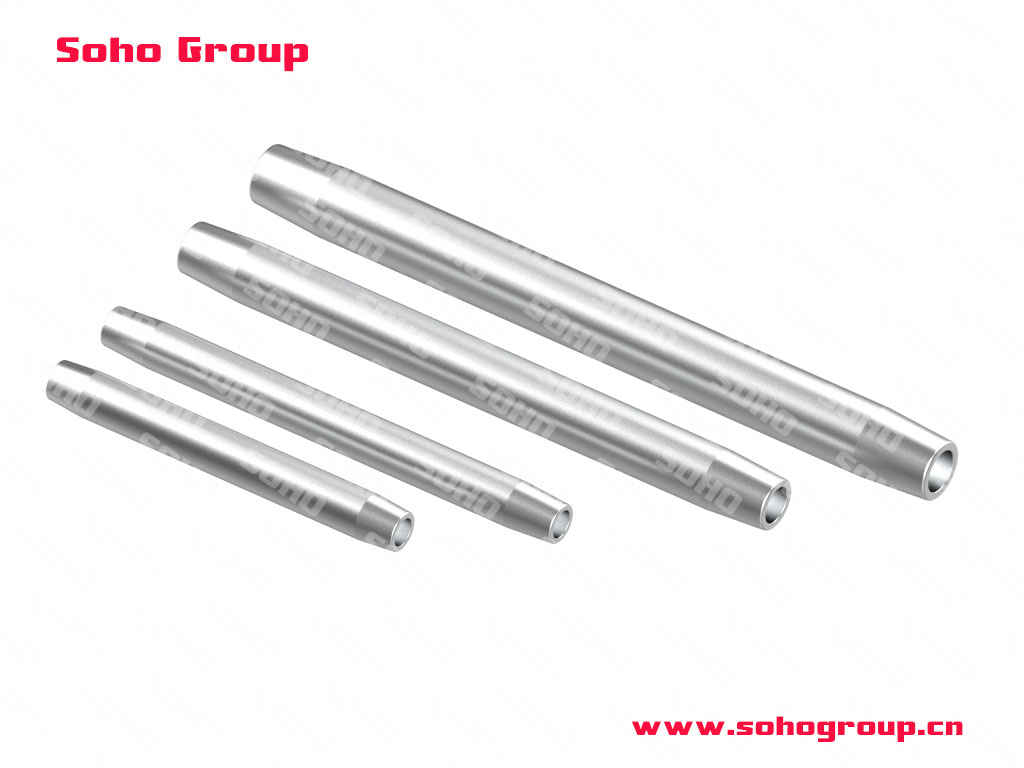

SOHO's compression joint sleeve offered in this part of the category are connecting conuctor and conductors under mechanical load.

Quality factor:
● Calculating length of compression part according to conductor's performance.

● Calculting inner and outer diameter to match conductor's mechanical properties and electrical performance.

● Damage and failure load of joint sleeve

● Current carrying for body

● Corona and RIV (more than 230kV)

SOHO standardized internationally according to the following standards:

● IEC 61284 - Overhead lines - Requirements and tests for fittings

● ISO 1461 - Hot dip galvanized coatings on fabricated iron and steel articles-Specifications and test methods

SOHO's compression repair sleeve offered in this part of the category repair damage stranding of conductors.

Quality factor:
● Calculating length of compression part according to conductor's performance.

● Calculting inner and outer diameter to match conductor's mechanical properties and electrical performance.

● Damage and failure load of repair sleeve

● Current carrying for body

● Corona and RIV (more than 230kV)

SOHO standardized internationally according to the following standards:

● IEC 61284 - Overhead lines - Requirements and tests for fittings

● ISO 1461 - Hot dip galvanized coatings on fabricated iron and steel articles-Specifications and test methods

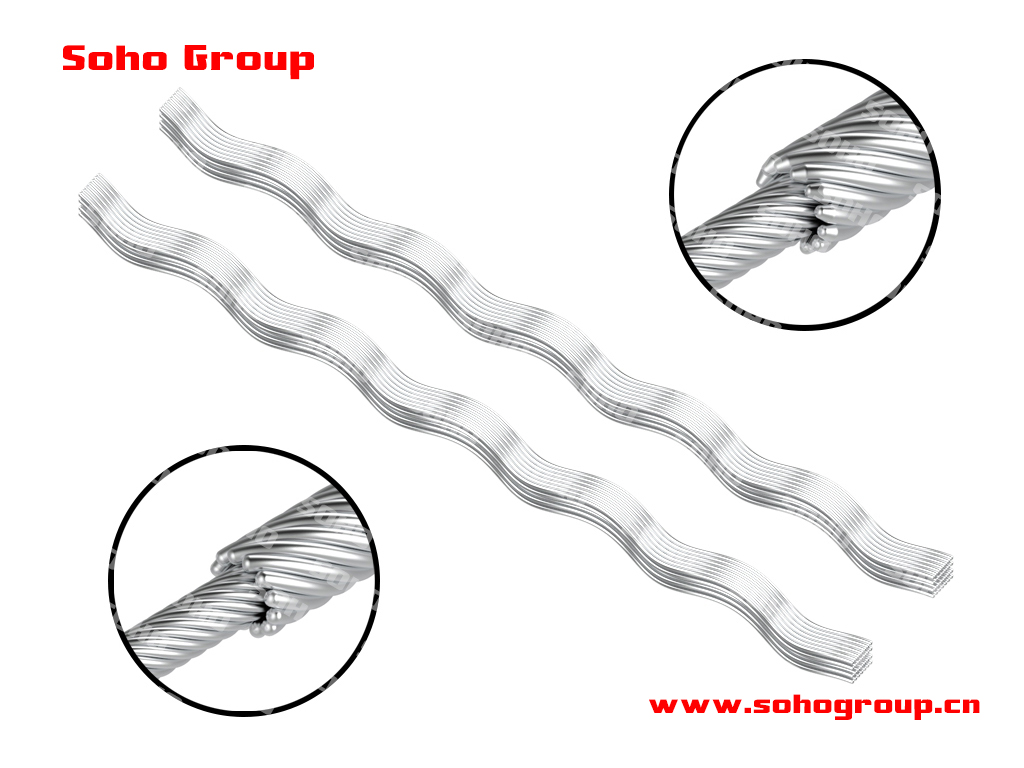

SOHO's preformed armour rod The main function of the armour rods is to protect conductors/strands against bending, compression, abrasion and arcover damage and to provide restorative repair. They are usually installed in the suspension points for suspension clamp & AGS clamp.

The rods of fittings are refaced in the ends to avoid damages in the assembly and to the specified conductor. Refacing of the ends is made by abrasion in the rods up to 4,6 mm. When these rods are of aluminium and the diameter is major or equal to 5,18 mm, are BALL-ENDED rods.These rods can be made with PARROT BILL ENDED rods to meet the corona onset and RIV requirement for most extra-high voltage application.

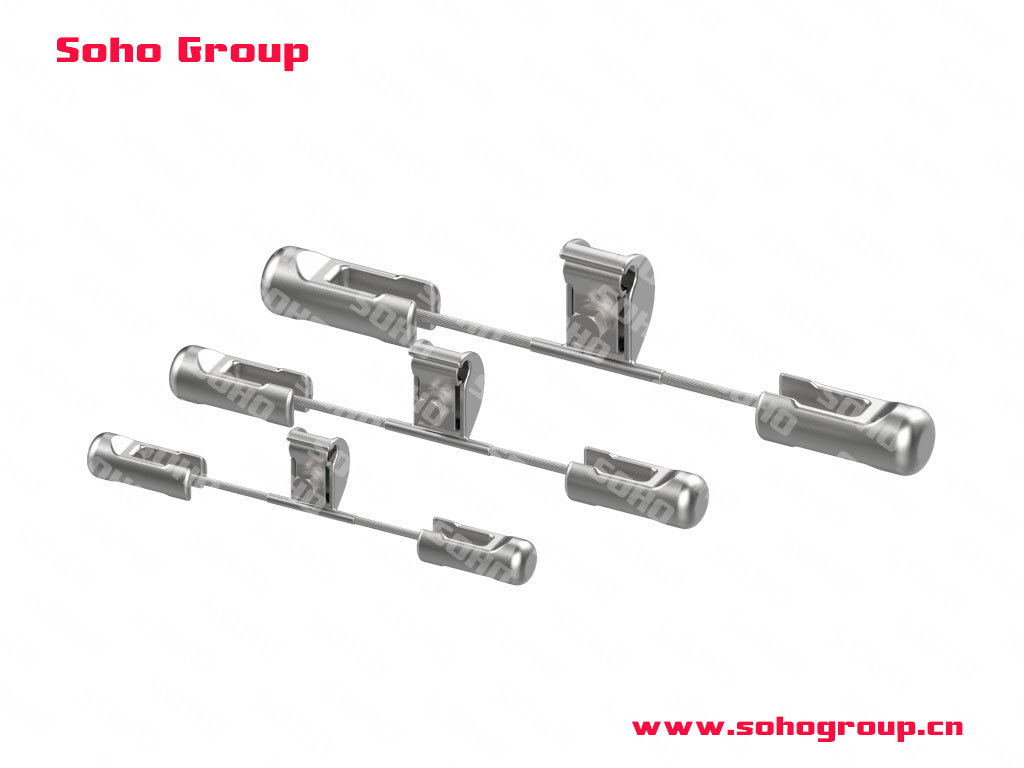

SOHO stockbridge damper respond to wind induced line vibration that is characterized by high frequency, low amplitude motion also know as aeolian vibration. SOHO stockbridge damper with Large and Small weights can achieve greater power dissipation and frequency response performance than “symmetrical weight” Stockbridge damper designs.  Wider frequency coverage translates into better protection as energy is more effectively dissipated over the entire range of conductor/cable frequencies.

SOHO standardized internationally according to the following standards:

● IEC 61897 Overhead lines - Requirements and tests for aeolian vibration dampers

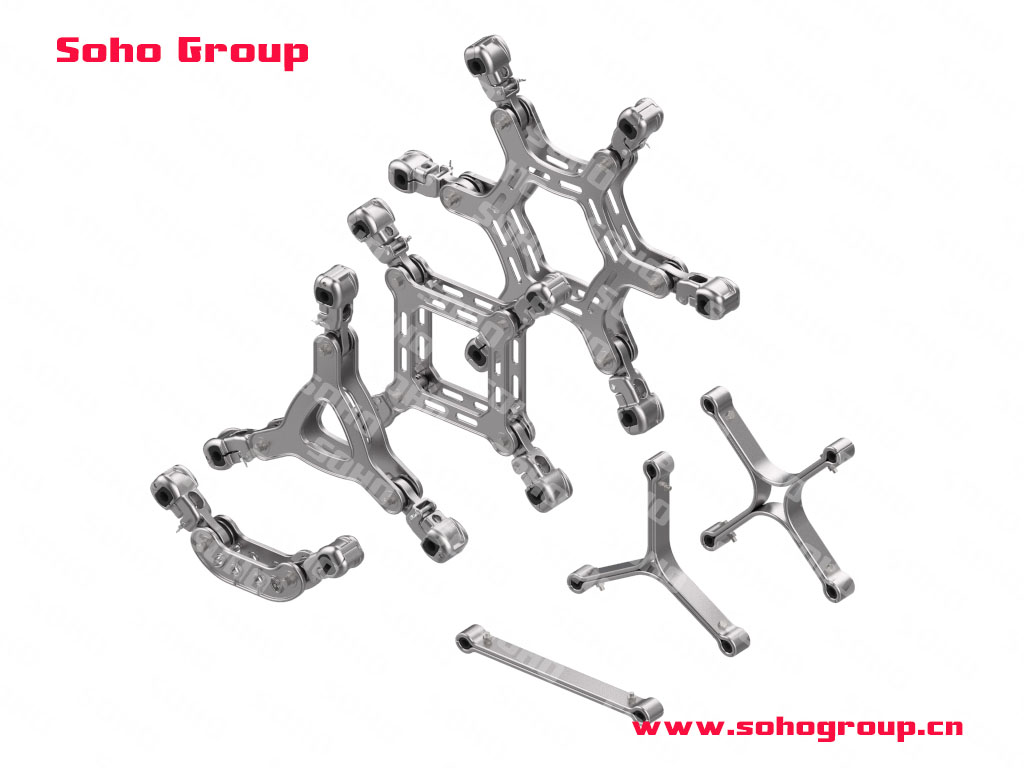

SOHO Spacer & Spacer Dampers for Twin-conductor, Triple-conductor, Quadded-condcutor and Hex Bundles conductor feature elastomer damping elements engineered to absorb maximum energy.  This design provides the greatest possible resistance to conductor fatigue by eliminating the need for additional vibration dampers.

SOHO standardized internationally according to the following standards:

● IEC 61854 Overhead lines - Requirements and tests for spacers

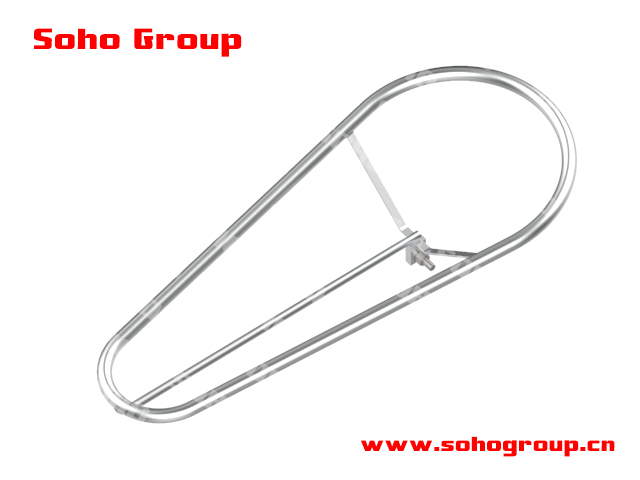

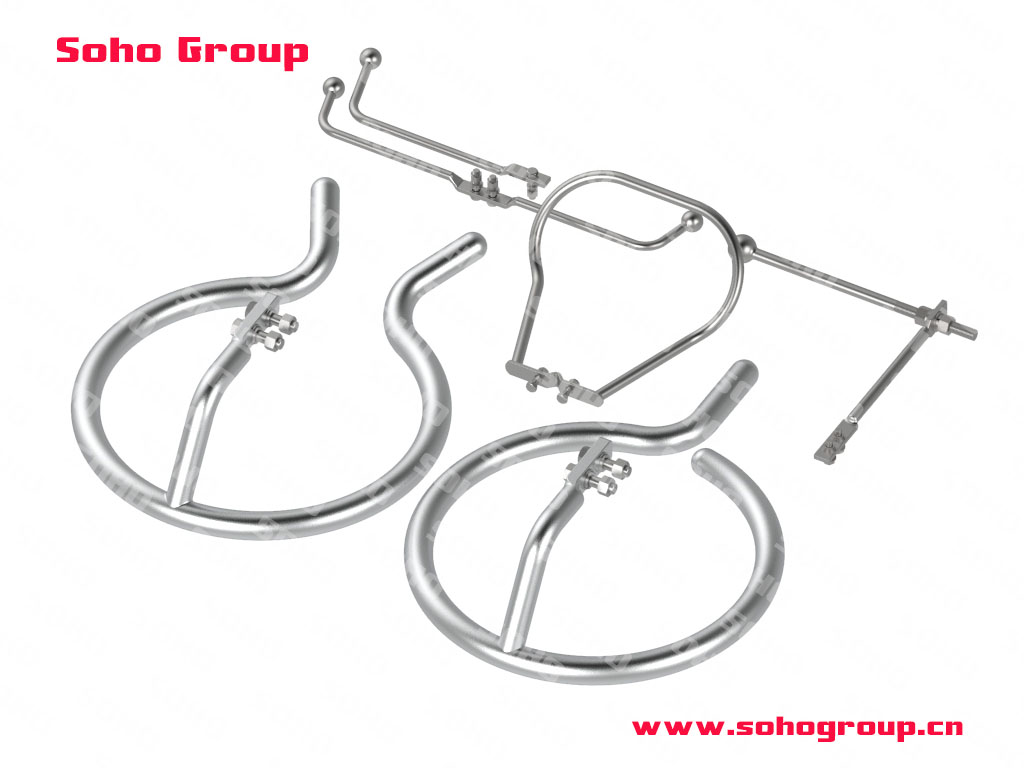

SOHO's Arcing Horn is basically projected conductors used to protect the Insulators in High Voltage Transmission Line from damage during flashover. Over voltage on Transmission Line may occur due to various reasons like lightning strike, sudden load variation, fault etc. Due to this high voltage a flash over may take place which will shatter the Insulator. To prevent Insulator from such an occurrence, it is very important that flashover do not take place through the Insulator. Arcing Horn serves this purpose by providing a bypass flashover the high voltage across the insulator using air as a conductive medium.

Application:66kV to 220kV

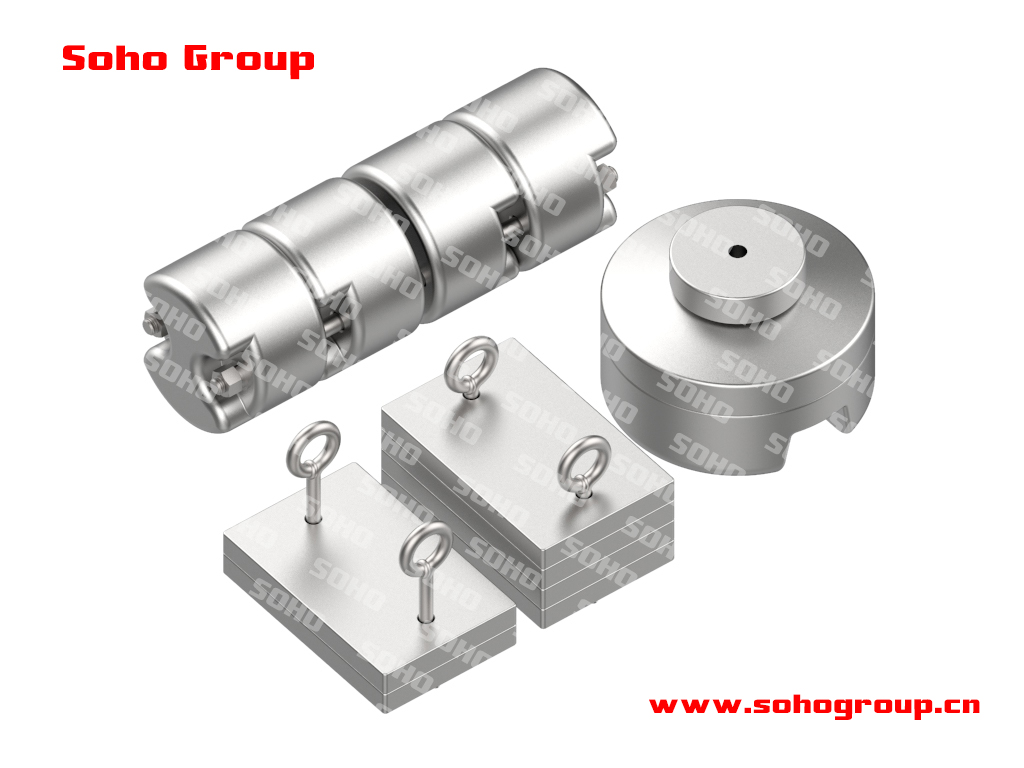

Counterweight or Jumper weight are available for single, twin, triple and quad conductor configurations. unitl weights range from 5kg to 50kg.

Combined 85kg(or according to requirement) clamp weights are available for  twin, triple and quad conductor bundles. These overhead clamp weights are supplied complete with aluminum liners where applicable.

All weights are galvanized in accordance with ISO 1461.

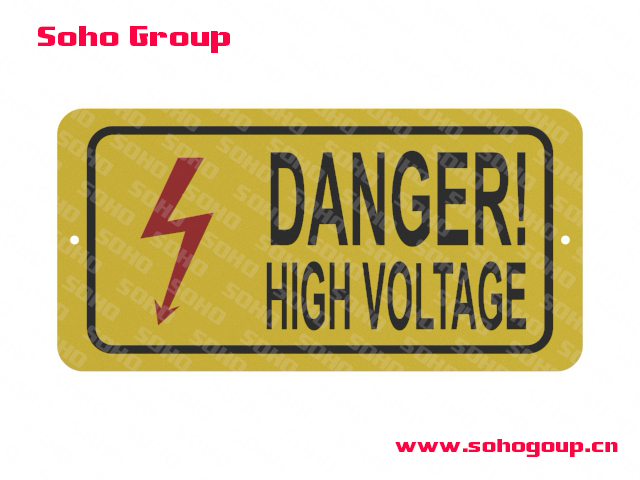

All kinds of Danger plate and Serial numbers plate.

● Plate material:Aluminum or steel

● Surface:Reflective or without reflective

● Content: Customization

● Color: Customization

● Dimension: Customization

● Number plate: Different number for each plate can be customized

SOHO's arcing horns are not to be confused with SOHO's corona rings (or the similar SOHO's grading rings) which are ring-shaped assemblies surrounding connectors, or other irregular hardware pieces on high potential equipment. Corona rings and grading rings are intended to equalize and redistribute accumulated potential away from components that might be subject to local accumulation and destructive discharges, although sometimes either device may be installed in close proximity to an arcing horn assembly.

Application:330kV to 500kV
