Transmission Conductor

Transmission Conductor

  • All aluminium stranded conductors(AAC)

    SOHO's AAC usage scope and main characteristics

    It is mainly used for electric distribution lines with little span,less stress.

    Temperature for continuous use in up to 75℃.

    SOHO standardized internationally according to the following standards:

    ● IEC 61089

    ● ASTM B232

    ● BS 215

    ● DIN 48201-5

    ● GB/T 1179

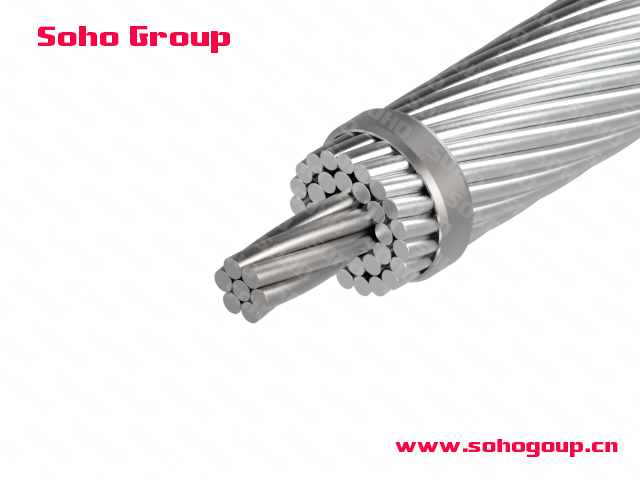

  • Aluminium conductors steel reinforced(ACSR)

    SOHO's ACSR usage scope and main characteristics

    It is applied for large span overhead transmission and distribution lines or overhead ground wire of lines.

    Temperature for continuous use can be up to 75 ℃.

    SOHO standardized internationally according to the following standards:

    ● IEC 61089

    ● DIN 48204

    ● ASTM B232

    ● BS 215 Part 2

    ● GB/T 1179

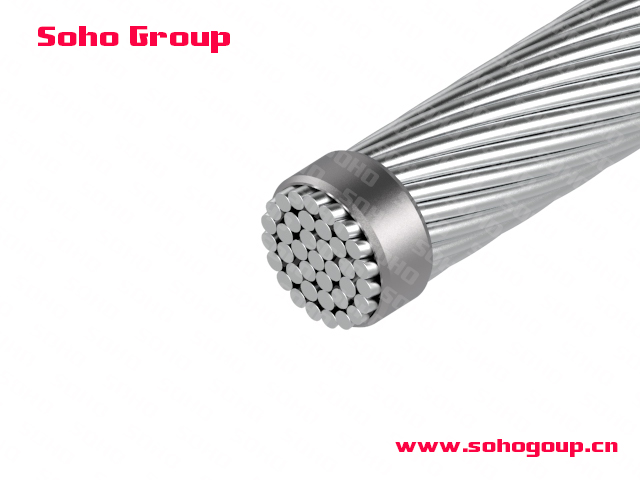

  • All aluminium alloy conductors(AAAC)

    SOHO's AAAC Usage scope and main characteristics

    It can replace part of the aluminum conductors or ACSR for overhead distribution lines.

    Temperature for continuous use is up to 90 ℃.

    Temperature of heat-resistant aluminum alloy strands is up to 150 ℃ and above.

    It has high current carrying capacity and good corrosion performance.

    SOHO standardized internationally according to the following standards:

    ● IEC 61089

    ● ASTM B 399

    ● BS3242

    ● DIN 48201-6

  • Aluminium alloy conductors steel reinforced(AACSR)

    SOHO's AACSR Usage scope and main characteristics

    It can be used as large span conductor, heavy ice wire or overhead communications

    wire, ground wire.

    Temperature for continuous use can be up to 90 ℃.

    Temperature of heat-resistant AACSR can be up to 150 ℃ and above.

    It has high current carrying capacity.

    SOHO standardized internationally according to the following standards:

    ● IEC 61089

    ● ASTM B 399

    ● BS3242

    ● DIN 48201-6

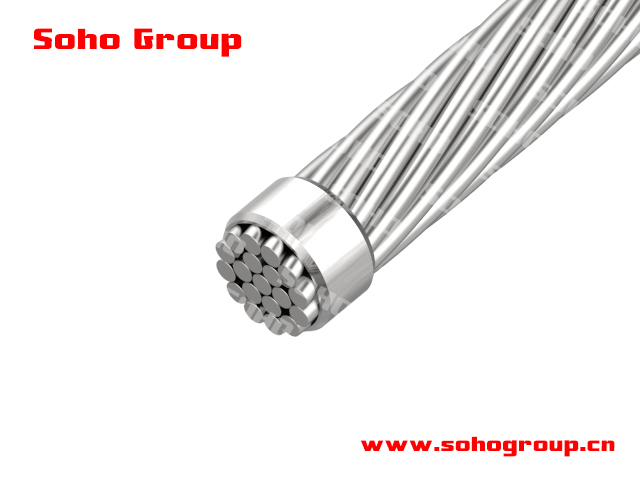

  • Arial Earth Wire & Shield Wire & Galvanized Steel Wire

    Material:The wire shall be drawn from steel,made by any process except that the air,and mixed air-oxygen,bottom blown basic converter shall not be used.

    Galvanizing:The galvanized coating shall comply with the requirements of BS443 or similar standard.

    Grade of breakig load:from 350Mpa to 1570Mpa according to user's requirement.

    SOHO standardized internationally according to the following standards:

    ASTM A 475

    BS183

    BS443

    BS4545

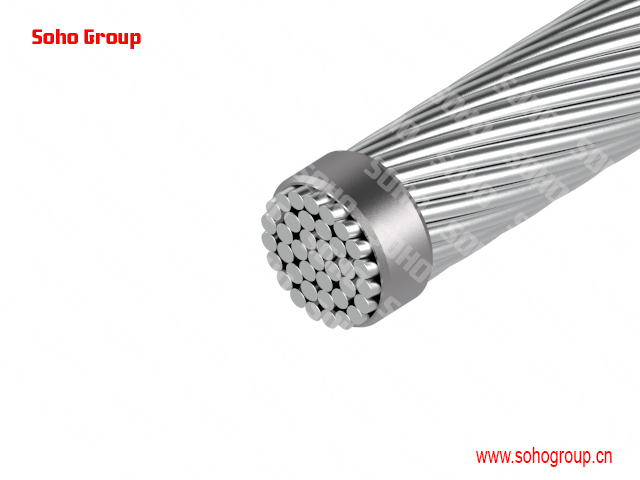

  • All aluminium stranded conductors(AAC)

    All aluminium stranded conductors(AAC)

    Bare overhead conductor(AAC,AAAC,ACSR,AACSR,ACAR)

    its good electrical properties, mechanical properties, simple structure, and easy installation, bare overhead conductors are widely used in a variety of transmission and distribution electric lines.

    Products can be manufactured according to GB standard, IEC standard, ASTM standard, BS standard and DIN and other standard and customers’specific requirements.

    IFA-XKH160448
    Min. Order: 1 Piece
