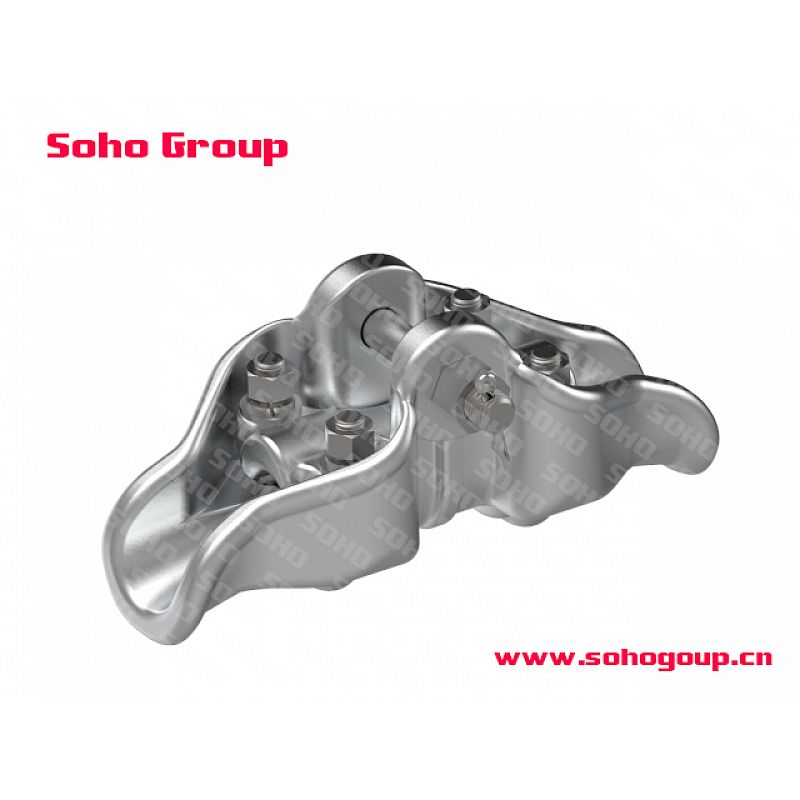

Suspension Clamp for High Temperature (Corona Proof Type)

Designed for use on extra-high voltage transmission lines. Corona and RIV are controlled through the design of the clamp, thus eliminating the need for control rings.

Type CFSH is designed for use on conductors operating at continuous temperatures up to 250° C. Armor rods or line guards required on conductors with continuous temperatures exceeding 200° C.

 Material:

Body – high-temperature aluminum alloy

Keeper – aluminum alloy

Grommet – neoprene

Hardware – hot dip galvanized steel (ISO1461,ASTM A153）

Cotter pin – stainless steel
